"SIR" Resilient Seat Gate Valve D.I

Download PDF
  • DESIGN STANDARD: IS 5153
  • SEAT TYPE: SOFT SEATED
  • MODEL: FLANGE TYPE
  • RATING: PN10 / PN16
  • FLANGE STANDARD: IS : 1538   BS 10 TABLE D,E
  • OPERATOR: HAND WHEEL
  • TEST PRESSURE: SHELL : 24 KG/CM², SEAT : 16 KG/CM²

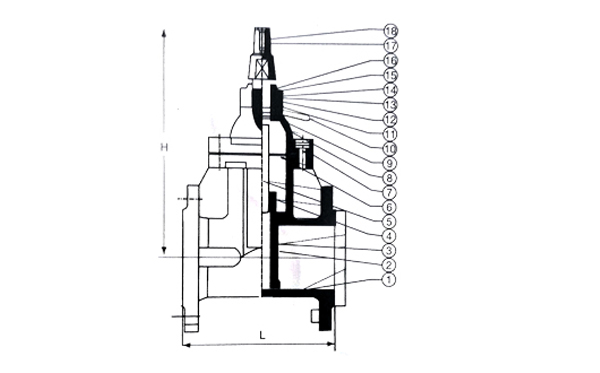

Product Materials
PT. No. PART NAME MATERIAL STANDARD GRADE
1. BODY Ductile Iron BS EN 1563 450/10, 500/7
2. Rubber Coating Rubber IMS 672:99 Nitrile/Epdm
3. WEDGE Ductile Iron BS En 1563 450/10, 500/7
4. Stem Nut Gun Metal BS 1400 LG2
5. Stem Stainless Steel BS 970:Part 1 431S29, 304S31
6. Gasket Rubber MS 672:99
BS EN 681		 Nitrile/Epdm
(66-75 Irhd Hardness)
7. Bolts Steel
Stainless Steel		 BS 3692
BS 970:Part 1		 Grade 5
431S29, 304S31
8. Bonnet Ductile Iron IBS EN 1563 450/10, 500/7
9. O-Ring Rubber MS 672:99
BS EN 681		 Nitrile/Epdm
(66-75 Irhd Hardness)
10. Trust
Collar		 Gun Metal BS 1400 LG2
11. O-Ring Rubber MS 672:99
BS EN 681		 Nitrile/Epdm
(66-75 Irhd Hardness)
12. O-Ring Rubber MS 672:99
BS EN 681		 Nitrile/Epdm
(66-75 Irhd Hardness)
13. Sleeve Gun Metal BS 1400 LG2
14. O-Ring Rubber MS 672:99
BS EN 681		 Nitrile/Epdm
(66-75 Irhd Hardness)
15. Gland Ductile Iron BS EN 1563 450/10, 500/7
16. Dust-Proof Rubber MS 672:99
BS EN681		 Nitrile/Epdm
(66-75 Irhd Hardness)
17. Bolts Steel
Stainless Steel		 BS 3692
BS 970:Part 1		 Grade 5
431529, 304S31
18. Cap Ductile Iron BS EN 1563 450/10, 500/7
Product Size/Dimensions
SIZE L H
50 165 280
65 185 290
80 200 310
100 220 350
125 250 350
150 285 480
200 340 600
250 405 730
300 460 850
